AWS Transit Gateway: Overview, Architectures, Problems Solved, and Multi-Account Sharing

What is AWS Transit Gateway?

AWS Transit Gateway (TGW) is a cloud-managed network hub designed to simplify network connectivity across multiple VPCs, on-premises resources, and remote networks. It acts as a scalable, centralized router at Layer 3, managing the flow of traffic between attached resources, such as VPCs, VPNs, AWS Direct Connect gateways, and other transit gateways12.

Problems AWS Transit Gateway Solves

• Complex VPC Peering: Eliminates the exponential complexity of mesh VPC peering by serving as a centralized hub, enabling a dramatic reduction in the number of required peering connections1.

• Operational Overhead: Centralizes routing, monitoring, and security, reducing manual configuration and errors in large environments.

• Scalability Constraints: Supports thousands of connections and route entries, far exceeding traditional limits imposed by direct peering.

• Inefficient Routing: Replaces inefficient mesh or chained routing with optimized hub-and-spoke traffic flow.

• Fragmented Security and Monitoring: Enables centralized enforcement and visibility for all east-west and hybrid traffic flows.

Core Architecture Patterns with AWS Transit Gateway

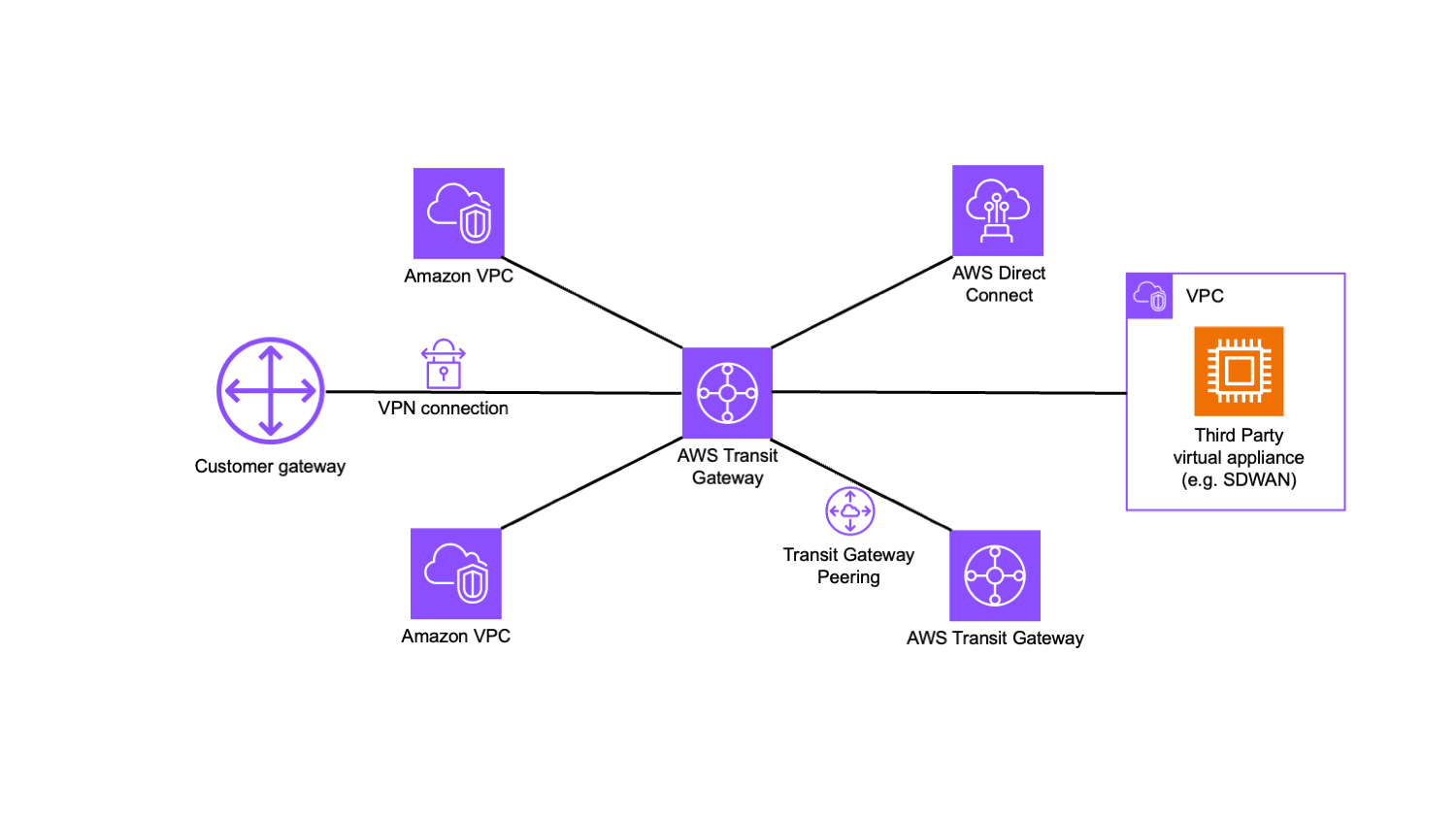

1. Hub-and-Spoke

• Central hub (TGW) connects to multiple spokes (VPCs, VPNs, or Direct Connects).
• Spokes communicate via the hub, not directly with each other, greatly reducing connectivity complexity12.

Use Cases:

• Enterprises managing tens to hundreds of VPCs.
• Organizations requiring centralized policy control and auditing.

2. Multi-Region/Inter-Region Peering

• Transit Gateways in different AWS regions are peered to extend network connectivity globally.
• VPCs in different regions can communicate via their regional TGWs over AWS’s backbone3.

Use Cases:

• Global applications.
• Disaster recovery requiring cross-region VPC communication.

3. Hybrid Connectivity

• On-premises environments connect to AWS via VPN or Direct Connect attachments to the TGW.
• Offers seamless hybrid cloud integration and migration paths for legacy data centers1.

Use Cases:

• Business continuity.
• Gradual migration to cloud.

4. Multi-Account Topology

• TGW is shared across multiple AWS accounts (using AWS Resource Access Manager).
• Central TGW allows unified governance and segmentation while permitting account-level autonomy1.

Use Cases:

• Enterprise with micro-segmented accounts for business units or environments.
• SaaS providers or MSPs managing multi-tenant networking.

5. Segmented and Isolated Network

• Multiple TGW route tables isolate or segment network traffic (e.g. environment isolation between dev/prod/shared).
• Provides VRF-like network segmentation12.

Use Cases:

• Strict regulatory/compliance isolation needs.
• Egress controls (centralized or restricted internet access).

6. Egress-Only or Centralized Network Services

• Shared services like DNS, security inspection, or internet access are centralized in one or more VPCs, available across the environment via TGW4.

Use Cases:

• Platform teams consolidating controls such as outbound internet or threat inspection.

7. Third-Party/Partner Connectivity

• TGW facilitates secure connection to external partner networks or managed service providers, supporting B2B or SaaS integrations5.

AWS Transit Gateway Architecture Diagrams

Below are illustrative architecture diagrams based on typical AWS and reference documentation:

Hub-and-Spoke Model

VPC A ----
TGW ------- VPC C
VPC B ----/ |
|--- VPN/Direct Connect (On-premises)

---

Multi-Region/Inter-Region Peering

[Region 1] [Region 2]
TGW-1 ---- VPCs --- TGW Peering --- TGW-2 ---- VPCs

---

Multi-Account Connectivity

[Account 1: VPCs]---|
TGW (shared via RAM)---[Account 2: VPCs]
[Account 3: VPCs]---|

---

Centralized Egress/Shared Services

[Private VPCs]--- TGW --- [Egress/Inspection VPC] --- Internet

How to Share AWS Transit Gateway Across Accounts

AWS Resource Access Manager (RAM) is used to share a Transit Gateway:

• The TGW owner shares the resource with other accounts or AWS Organization units.

• Recipient accounts can then attach their VPCs to the shared TGW, enabling cross-account network integration.

• The owner controls the Transit Gateway, route tables, policies, and monitoring, while attached accounts manage their own connections. Attachments can be individually removed by either party1.

Summary Table: Key Features

Feature	Description
Centralized Routing	All traffic managed via a central hub
High Scalability	Thousands of attachments/connections supported
Multi-Account Support	Share TGW using AWS RAM for unified enterprise access
Route Table Segmentation	Fine-grained policy, isolation and isolation
Hybrid/Global Reach	VPN, Direct Connect, Inter-region peering
Traffic Inspection	Centralized egress, logging, and service integration

References:

• AWS Documentation and Architecture Guides12345

1. https://www.cloudoptimo.com/blog/mastering-aws-transit-gateway-architecture-use-cases-and-best-practices/
2. https://docs.aws.amazon.com/vpc/latest/tgw/how-transit-gateways-work.html
3. https://aws.amazon.com/blogs/networking-and-content-delivery/aws-cloud-wan-and-aws-transit-gateway-migration-and-interoperability-patterns/
4. https://github.com/aws-samples/aws-transit-gateway-egress-vpc-pattern/blob/master/README.md
5. https://docs.aws.amazon.com/prescriptive-guidance/latest/integrate-third-party-services/architecture-3.html
6. https://docs.aws.amazon.com/solutions/latest/network-orchestration-aws-transit-gateway/architecture-diagram.html
7. https://docs.aws.amazon.com/vpc/latest/tgw/tgw-best-design-practices.html
8. https://d1.awsstatic.com/events/reinvent/2019/REPEAT_1_AWS_Transit_Gateway_reference_architectures_for_many_VPCs_NET406-R1.pdf
9. https://docs.aviatrix.com/documentation/v7.2/network/tgw-design-patterns.html?expand=true
10. https://d1.awsstatic.com/architecture-diagrams/ArchitectureDiagrams/inspection-deployment-models-with-AWS-network-firewall-ra.pdf
